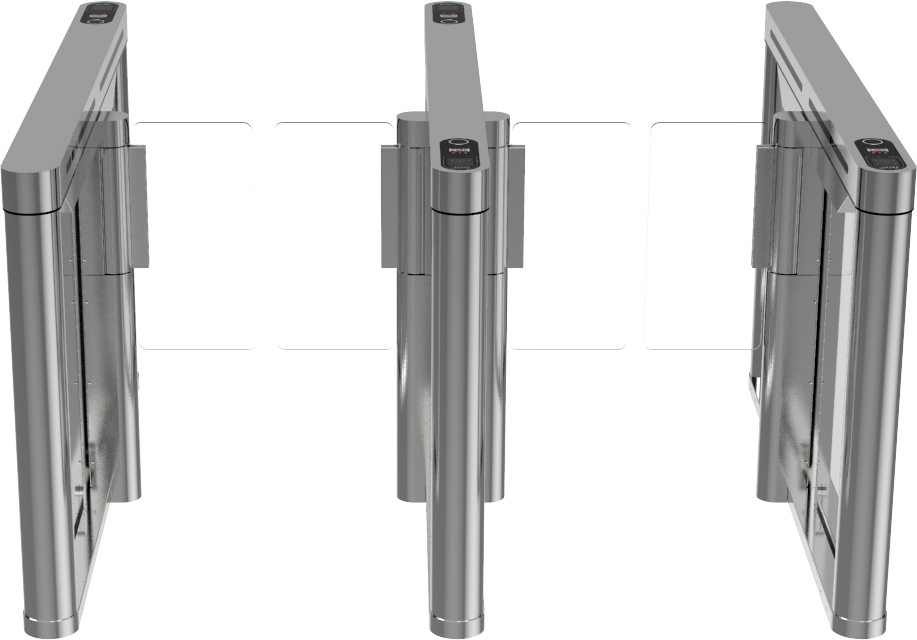

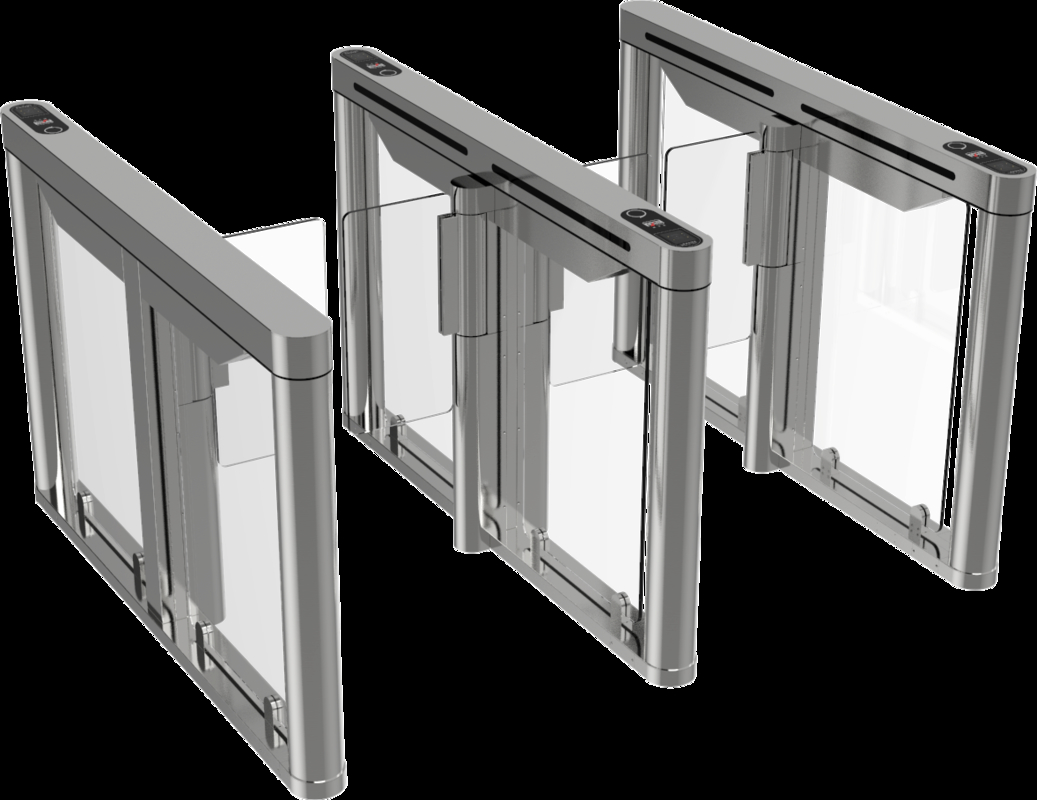

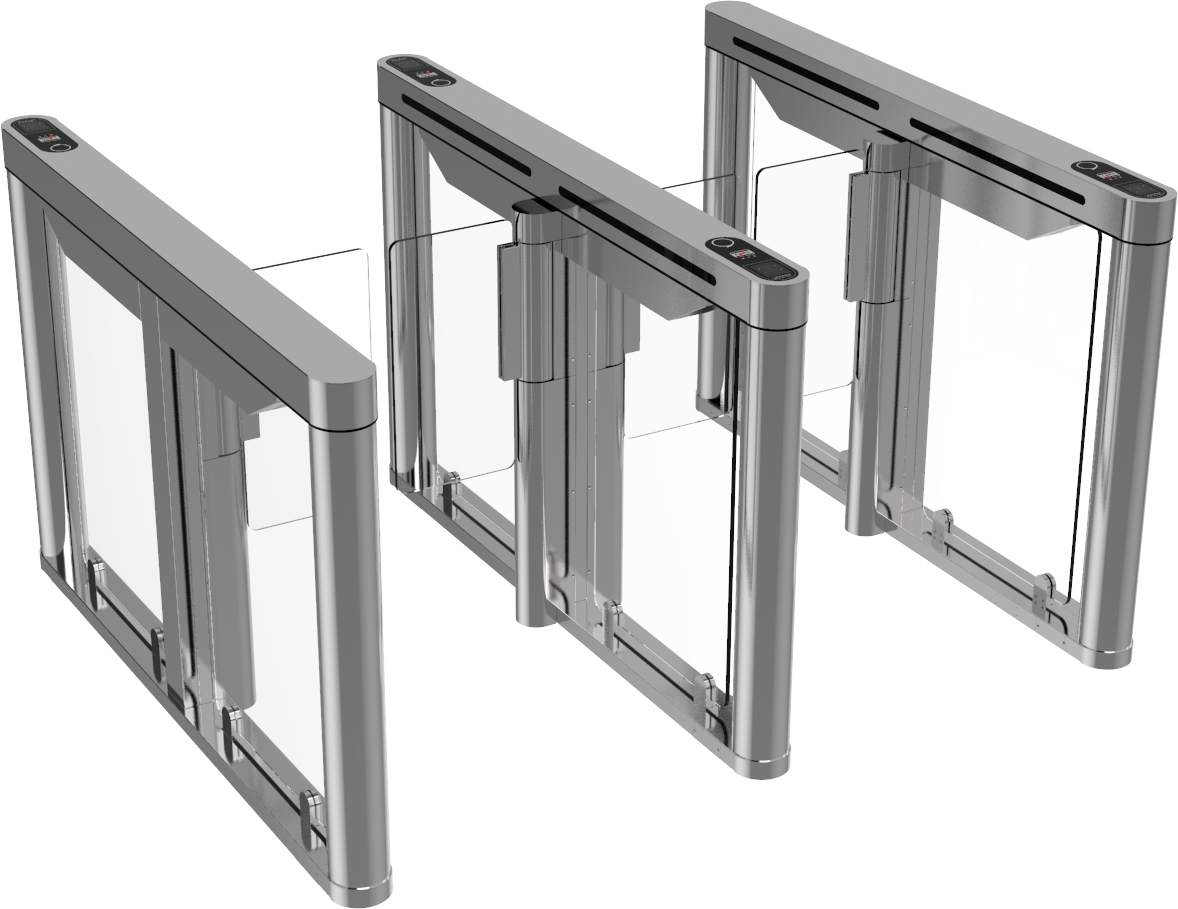

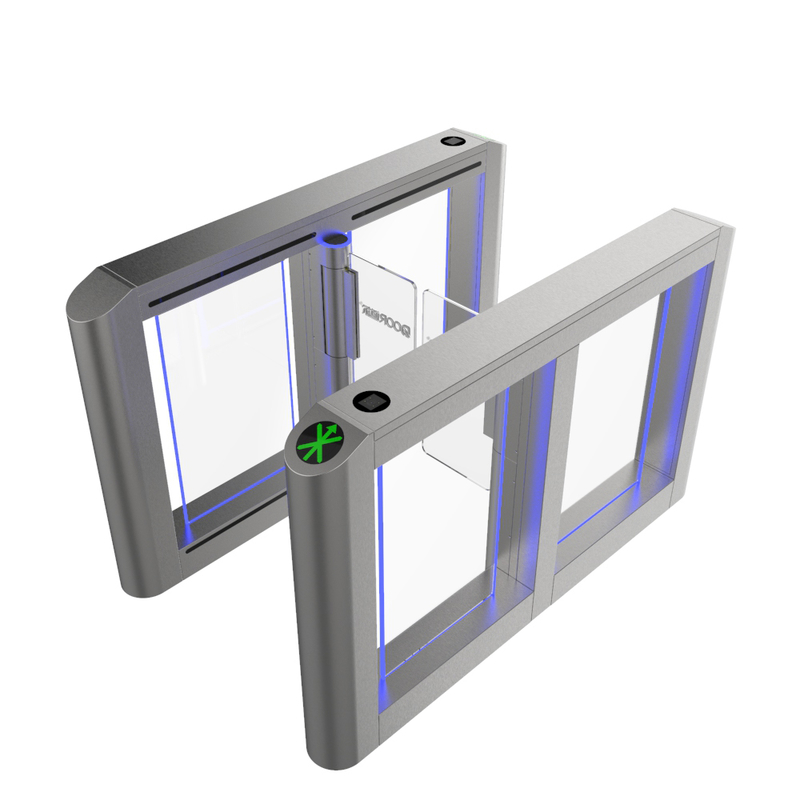

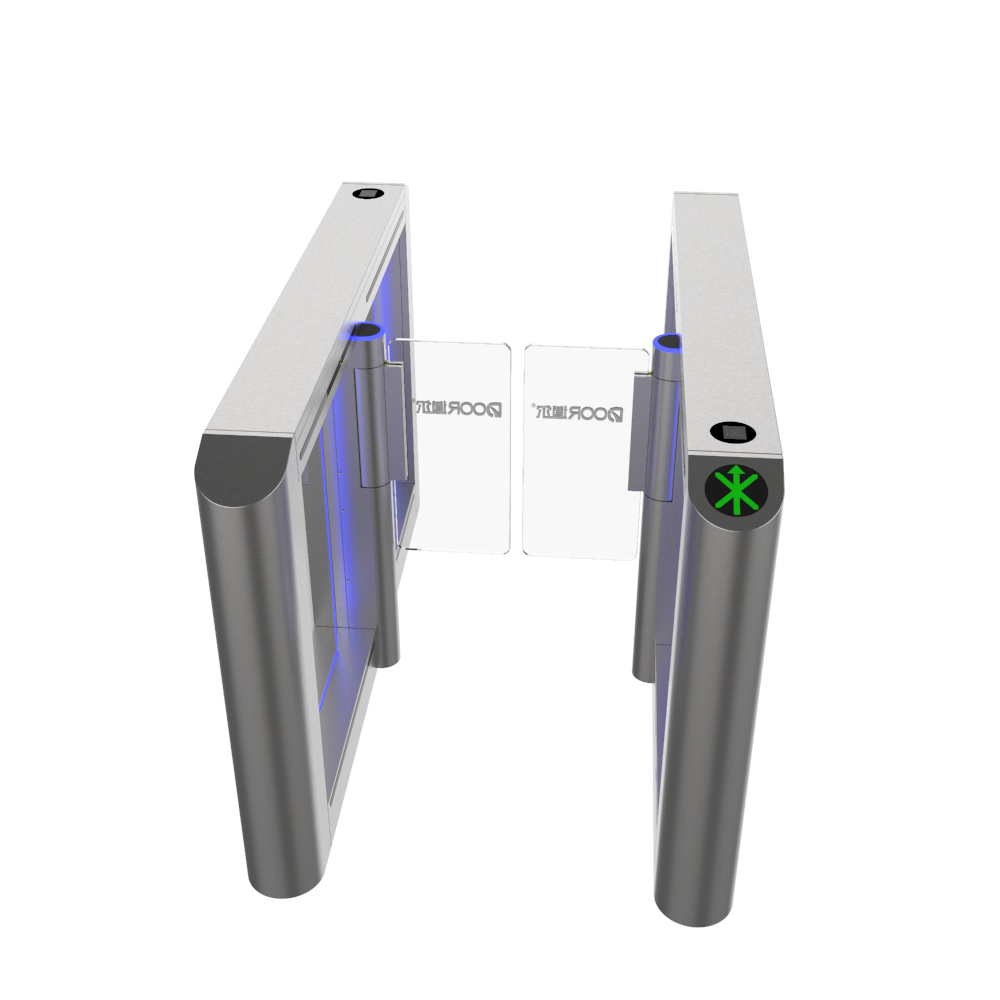

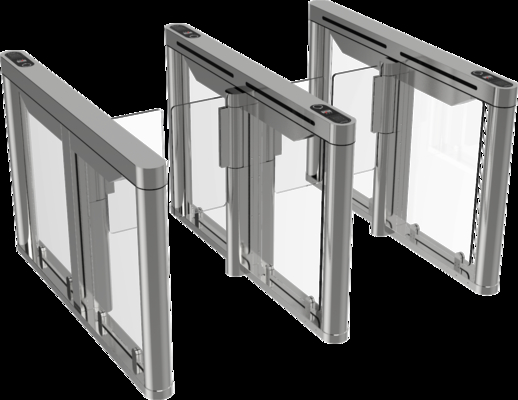

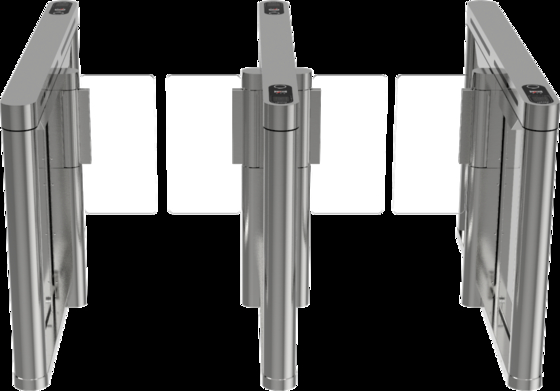

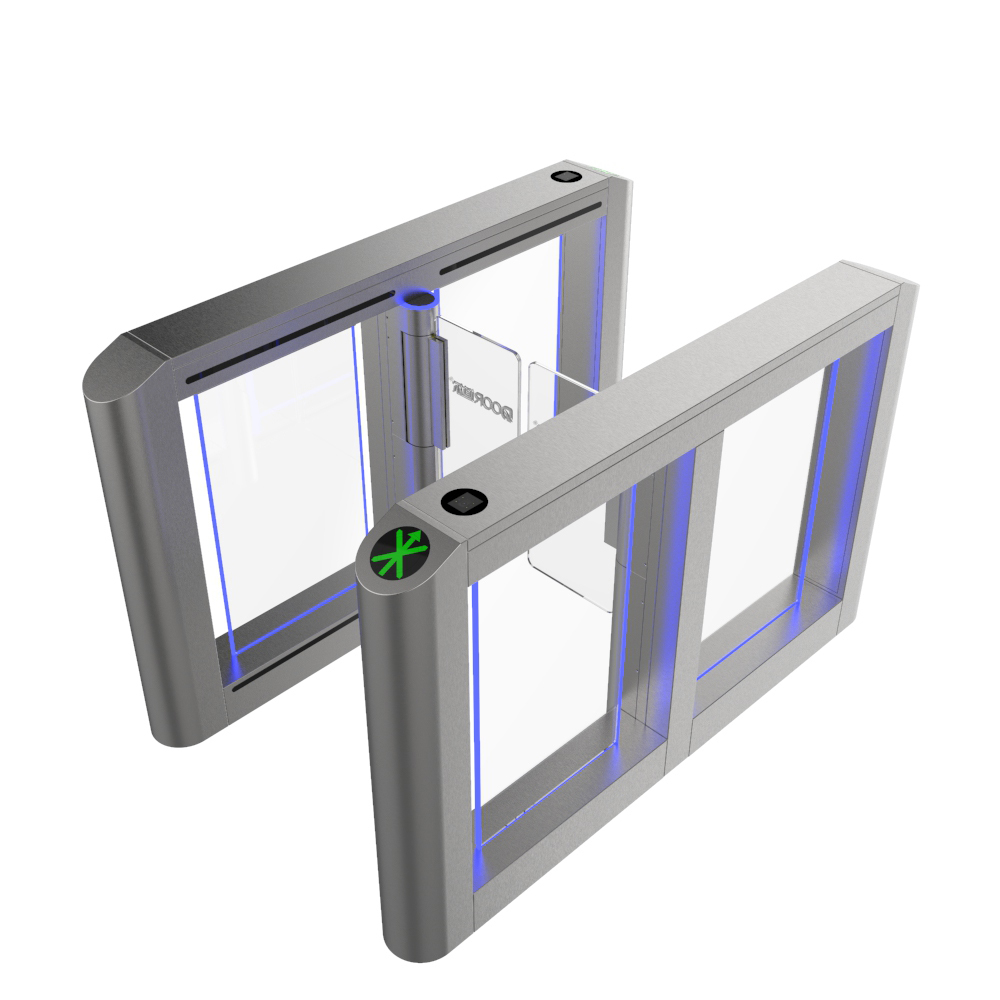

304 Stainless Steel Speed Gate with Servo Motor and Face Recognition

Informazioni di base

Place of Origin:	China
Marca:	DOOR or OEM
Certificazione:	CE / IS09001
Model Number:	DR.TD6623

Minimum Order Quantity:	1 lane
Prezzo:	negotiable
Packaging Details:	wood carton
Delivery Time:	5-7 working days
Payment Terms:	T/T
Supply Ability:	2500 sets per month

Miglior prezzo Contattaci

Material:	304# Stainless Steel	Suitable For:	Access Control, Entrance And Exit Control
Turnstile Material:	SUS304 Stainless	Communication Interface:	RS485,dry Contact
Power Supply:	AC110/AC220+/-10%	Swing arm available:	Acrylics Or Tempered Glass
Driving Motor:	Servo Motor	Opening Signal Input::	Dry Contact
Working environment:	-25℃-+70℃	Pass speed:	30-50p/m
Support System:	Face Recognition,ic/id Card,fingerprint	Motor:	Servo motor
IR Sensor:	8 pairs	Passage Width:	Standard 600mm, max 900mm
IP Rating:	IP42	Mean Cycles Between Failure:	20 million times
Voltage:	AC110V/AC220V±10% 50-60Hz	Operating Power:	Single Core 100w, dual core 200w
Method of position:	Motor + clutch + encoder	Mtbf:	10 Million Times
Size:	L1600×W160×H1030mm	Weight:	80kg
Color:	Silver
Evidenziare:	304 stainless steel speed gate , servo motor speed gate turnstile , face recognition speed gate turnstile

304 Stainless Steel Speed Gate with Servo Motor and Face Recognition

Product Specifications

Attribute	Value
Material	304# Stainless Steel
Suitable For	Access Control, Entrance And Exit Control
Turnstile Material	SUS304 Stainless
Communication Interface	RS485, dry Contact
Power Supply	AC110/AC220+/-10%
Swing arm available	Acrylics Or Tempered Glass
Driving Motor	Servo Motor
Opening Signal Input	Dry Contact
Working environment	-25℃-+70℃
Pass speed	30-50p/m
Support System	Face Recognition, ic/id Card, fingerprint
Motor	Servo motor
IR Sensor	8 pairs
Passage Width	Standard 600mm, max 900mm
IP Rating	IP42
Mean Cycles Between Failure	20 million times
Voltage	AC110V/AC220V±10% 50-60Hz
Operating Power	Single Core 100w, dual core 200w
Method of position	Motor + clutch + encoder
MTBF	10 Million Times
Size	L1600×W160×H1030mm
Weight	80kg
Color	Silver

Key Features

8-pair infrared anti-pinch protection with fire alarm linkage
Triple pedestrian protection system: infrared sensors, pass logic, and return-when-blocked
Multiple operation modes: normally closed (locking/non-locking) and peak traffic
Memory opening, delay closing, and overtime closing functions
Bidirectional traffic capability with ≤180° swing arc

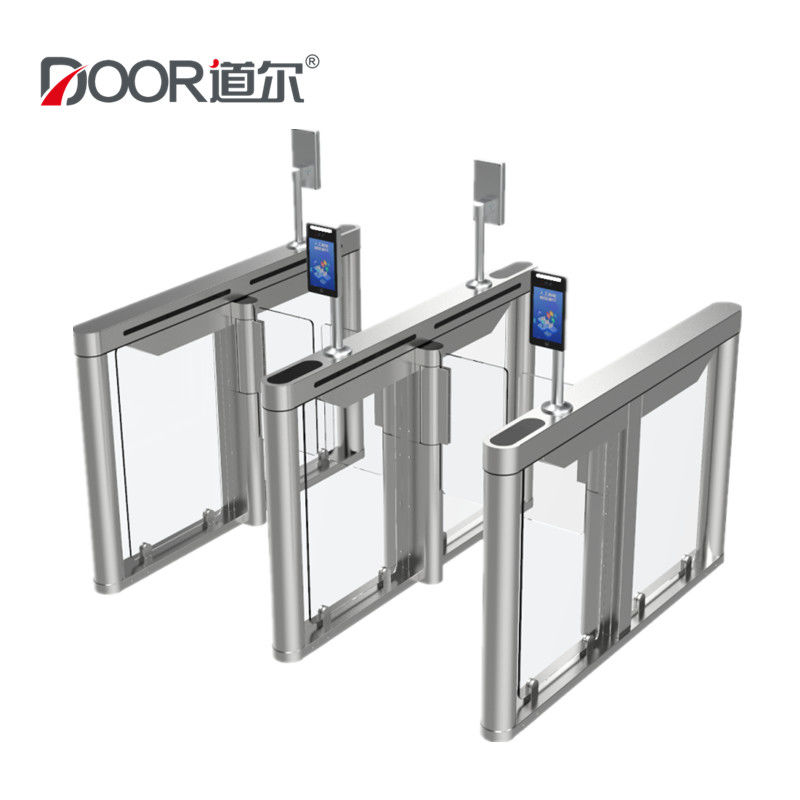

Integrated card/QR code reader with face recognition compatibility
Fire-safe free passage during power outages
Ultra-fast 0.5 second opening/closing speed
Servo motor driven for reliable, quiet operation with extended lifespan

Applications

Widely used for official or corporate buildings, sectioning off certain areas in hotels (gyms, spas), industrial buildings or offices.

Customization Options

Customized logo (Min. order: 2 pieces)
Customized packaging (Min. order: 2 pieces)
Graphic customization (Min. order: 2 pieces)

Supplier's Customization Ability

Minor customization
Drawing-based customization
Sample-based customization
Full customization

Packing Information

Plywood case size: 167*35*114cm
G.W.: 85KG

Shipping Information

Shipping fee and delivery date to be negotiated. Contact supplier for more details.
